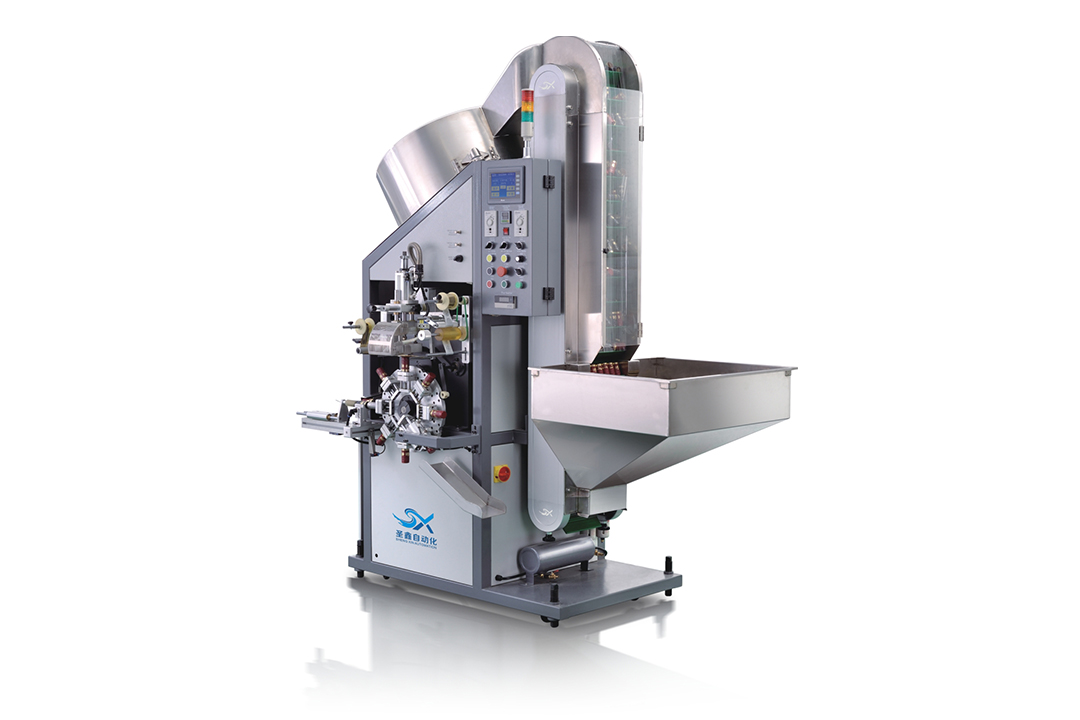

SX-02全自动八工位烫金机(顶部)

全国热线 0755-27178988

●  应用

本机型主要适用于各种不同规格酒瓶盖顶面的烫印,材质为塑料和金属铝盖。

●  Applications
This model is mainly suitable for hot stamping on the top surface of wine bottle caps of various specifications, with materials including plastic and metal aluminum caps.

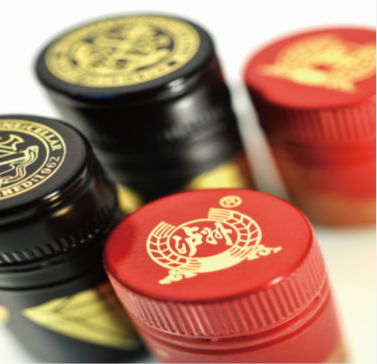

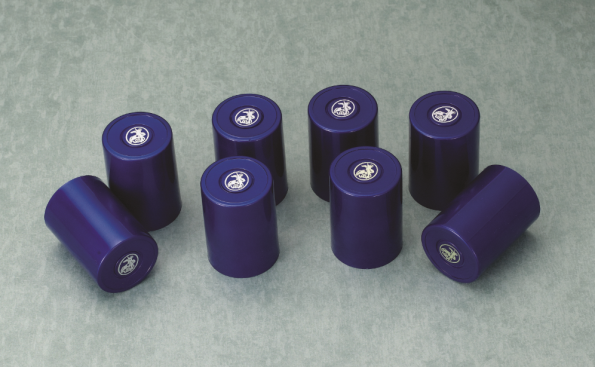

产品案例展示:




特点



  • 1. 自动理料上料,自动选面;

    2. 温度和压力可调;

    3. 不同产品只需要更换管位,调整参数即可;

    4. 可定制顶侧一体机,实现盖子侧面烫金和顶部烫金结合。


    1.Automatic sorting and feeding, automatic side selection;

    2.Adjustable temperature and pressure;

    3.For different products, only the tube holder needs to be changed and parameters adjusted;

    4.Customizable top-and-side integrated machine to achieve combined hot stamping on the side and top of the cap.

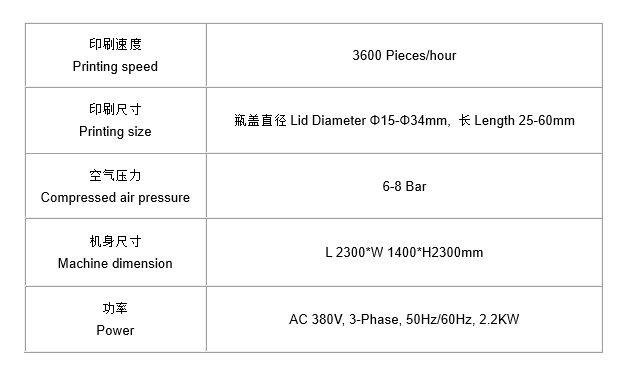

技术规格


印刷速度 Printing speed 3600 Pieces/hour
印刷尺寸 Printing size 瓶盖直径 Lid Diameter φ15-φ34mm, 长 Length 25-60mm
空气压力 Compressed air pressure 6-8 Bar
机身尺寸 Machine dimension L2300*W 1400*H2300mm
功率 Power AC 380V, 3-Phase, 50Hz/60Hz, 2.2KW
