SX-01-G半自动异型盖烫印机

全国热线 0755-27178988

 ●  应 用

适用于不规则盖子的烫金。

●  Applications

Suitable for hot stamping on irregular lids.

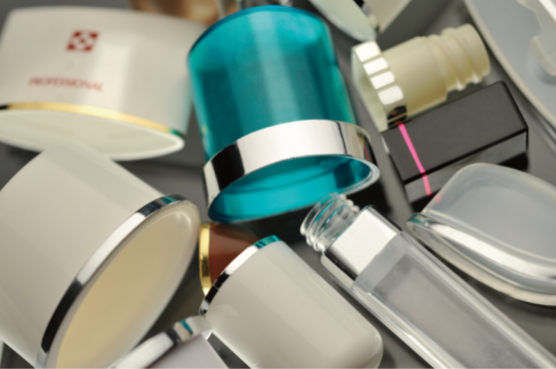

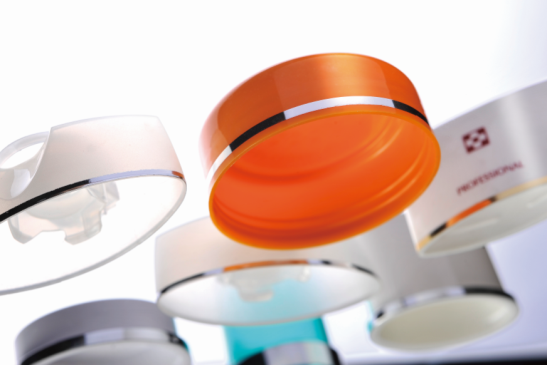

产品案例展示:




特点



    • 1.结构简单易操作;

      2.随动性好,曲面或尖角,只要是外凸的,都可以烫印均匀、亮泽、无接头、成品率高。

      1. Simple structure, easy to operate;

      2. Good conformability / tracking performance: for any convex surface, whether curved or with sharp corners, it ensures uniform, glossy, seamless hot stamping with high yield.

技术规格


烫印直径 Stamping diameter 直径 φ10-φ100mm
烫印宽度 Stamping width 1-20mm
烫印速度 Stamping speed 1200-3000 Pieces/hour
功率 Power AC 110V/220V, single phase, 700W
压缩空气压力 Compressed air pressure 6-8 Bar
机身尺寸 Machine dimension L 600*W 500*H 1150mm
加热方式 Heating method 红外陶瓷加热 Far infrared ceramic heating
