● 应用

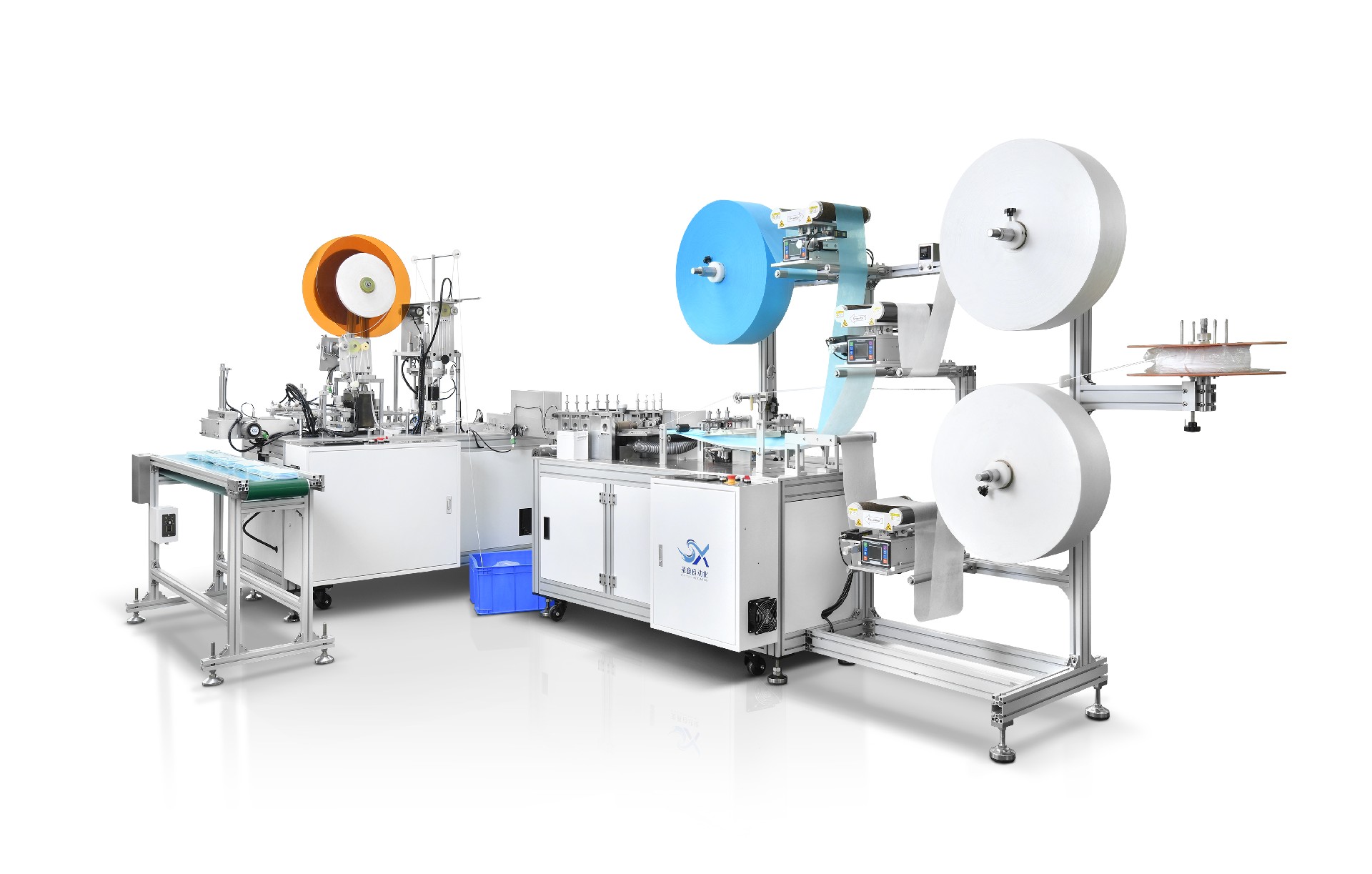

本机型是最新研发的全自动高速平面口罩生产线，包括原材料自动输送/切断鼻梁条/口罩边缘焊接/折叠/超声波熔合/成型切断/耳带焊接/自动成品送出等全程自动化，完成从原材料到口罩成品的整个生产过程。
● Applications
This model is the newly developed fully automatic high-speed flat face mask production line, which integrates automated processes including raw material feeding, nose wire cutting, mask edge welding, folding, ultrasonic bonding, forming and cutting, ear-loop welding, and automatic finished product output. It completes the entire production process from raw materials to finished masks.
产品案例展示：
1.全伺服电机驱动，稳定性高，故障率低;
2.PLC控制和触摸屏人机界面，操作简单方便;
3.原材料自动张力、自动纠偏控制，保证原材料张力均衡、自动纠正布料位置;4.光电检测原材料，减少材料的浪费，同时声控报警提示并停机;
1.All-servo motor drive, high stability, low failure rate;
2.PLC control and touch screen human-machine interface (HMI) for simple and convenient operation;
3.Automatic tension and automatic web guide control for raw materials, ensuring balanced raw material tension and automatic correction of material position;
4.Photoelectric detection of raw materials reduces material waste, with an audible alarm and machine stop.

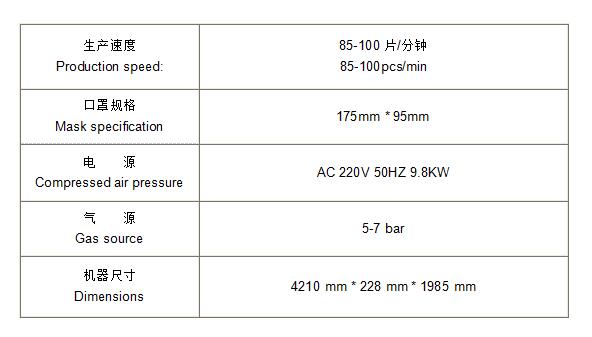

| 生产速度 Production speed | 85-100片/分钟 85-100pcs/min |
| 口罩规格 Mask specification | 175mm *95mm |
| 电源 Compressed air pressure | AC 220V 50HZ 9.8KW |
| 气源 Gas source | 5-7 bar |
| 机器尺寸 Dimensions | 4210 mm*228 mm*1985 mm |
