● 应用
本机型是多功能转盘旋转式全自动单色丝网印刷机，适用于圆柱体表面印刷不同的图案和文字。如膏霜罐，盖子，铝氧化口红管等等。其特点是易操作，印刷速度快。本机PLC控制，大型触控式人机界面操作，含自动站立式进出料系统，含自动上下料、静电除尘，预定位和印刷定位，无件不印，LED灯固化。
● Applications
This model is a multifunctional turntable rotary fully automatic single-color screen printing machine, suitable for printing various patterns and texts on cylindrical surfaces, such as cream jars, caps, anodized aluminum lipstick tubes, etc. It features easy operation and high printing speed. The machine is PLC-controlled with a large touchscreen HMI, and includes an automatic standing loading/unloading system, automatic feeding and discharging, electrostatic dust removal, pre-positioning and printing registration, no-part-no-print, and LED curing.
产品案例展示：
其特点是易操作，印刷速度快。
本机PLC控制，大型触控式人机界面操作，含自动站立式进出料系统，含自动上下料、静电除尘，预定位和印刷定位，无件不印，LED灯固化。
It features easy operation and high printing speed.
This machine is PLC-controlled, with a large touchscreen HMI. It includes an automatic standing loading/unloading system, automatic feeding and discharging, electrostatic dust removal, pre-positioning and printing registration, no-part-no-print, and LED curing.

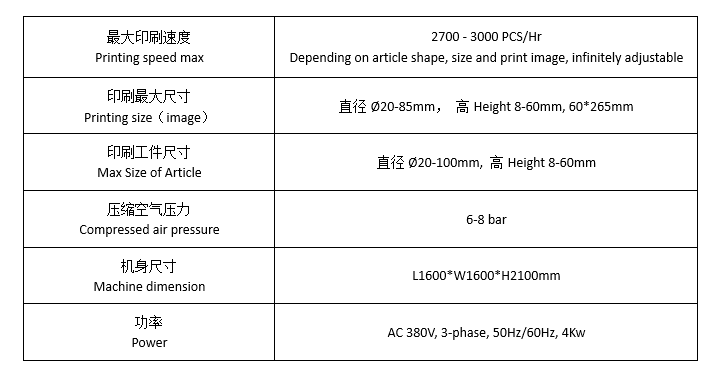

| 最大印刷速度 Printing speed max | 2700-3000 PCS/Hr Depending on article shape, size and print image, infinitely adjustable |
| 印刷最大尺寸 Printing size (image) | 直径φ20-85mm,高Height 8-60mm,60*265mm |
| 印刷工件尺寸 Max Size of Article | 直径φ20-100mm,高Height 8-60mm |
| 压缩空气压力 Compressed air pressure | 6-8 bar |
| 机身尺寸 Machine dimension | L 1600*W1600*H 2100mm |
| 功率 Power | AC 380V, 3-phase, 50Hz/60Hz, 4Kw |
