SX-320全自动CNC控制3色通用型丝印机

全国热线 0755-27178988

●  应用

本机型是多色多功能旋转自动丝印机,适用于圆柱体表面印刷不同的图案和文字。例如瓶子、亚克力膏霜罐、容器、圆形塑料和玻璃管、盖子、胶管、口红管、等等。其特点是易操作、精确定位、高自动化、快速印刷。

●  Applications

This model is a multi-color multi-function rotary automatic screen printing machine, suitable for printing various patterns and texts on cylindrical surfaces, such as bottles, acrylic cream jars, containers, round plastic and glass tubes, caps, glue tubes, lipstick tubes, etc. It features easy operation, precise positioning, high automation, and fast printing.

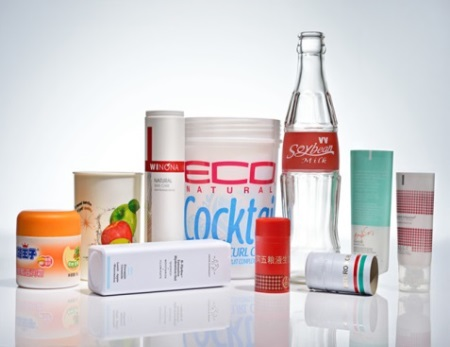

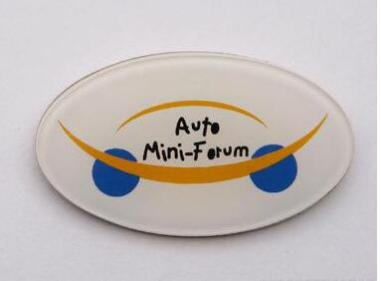

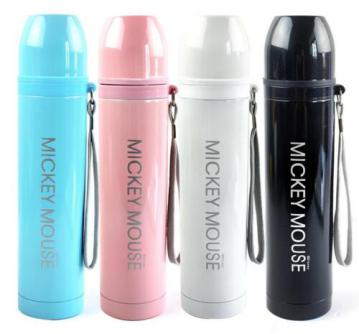

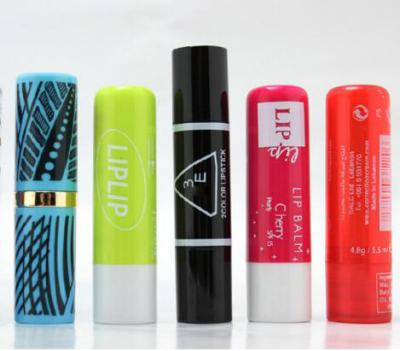

产品案例展示:







特点



  • 1.可选产品自动卧式进出或者立式进出,自动选方向、静电除尘、火焰预处理、预定位和印刷定位、无件不印、传统UV、LED UV、热风固化可选;

    2.可搭配烫金、贴标、热转印、上光油工位;

    3.采用高规格机电配置,核心部件使用台湾、法国、德国、美国、日本等知名品牌。


    1.Optional automatic horizontal or vertical loading/unloading of products, automatic orientation selection, electrostatic dust removal, flame pretreatment, pre-positioning and printing registration, no-part-no-print, conventional UV, LED UV, and optional hot air curing;

    2.Can be equipped with hot stamping, labeling, thermal transfer printing, and varnishing stations;

    3.Adopts high-spec electromechanical configuration, with core components from well-known brands in Taiwan, France, Germany, the United States, Japan, etc.

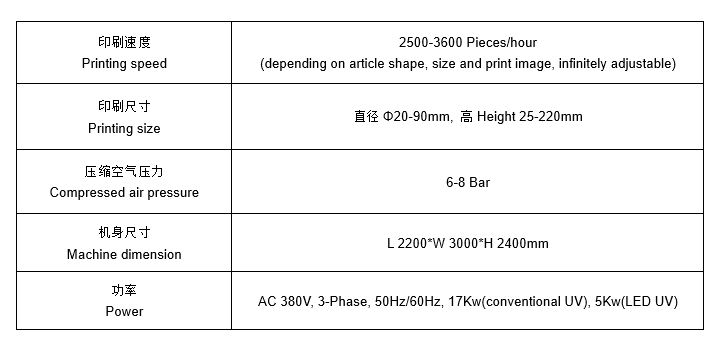

技术规格


印刷速度 Printing speed 2500-3600 Pieces/hour
(depending on article shape, size and print image, infinitely adjustable)
印刷尺寸 Printing size 直径φ20-90mm,高Height 25-220mm
压缩空气压力 Compressed air pressure 6-8 Bar
机身尺寸 Machine dimension L2200*W 3000*H 2400mm
功率 Power AC 380V, 3-Phase, 50Hz/60Hz, 17Kw(conventional UV), 5Kw(LED UV)
