SX-103全自动单色丝印机_全自动丝印机_产品展示

SX-103全自动单色丝印机

全国热线 0755-27178988

● 应用

适用于圆柱体外圆表面的单色印刷，如各种瓶盖、管状、杯子等产品的侧身印刷。其特点是传动结构平稳简单，操作灵活方便，印刷速度快，效果好。承印物的材料可以是塑胶、金属。

● Applications

Suitable for single-color printing on the outer cylindrical surface, such as the side printing of various bottle caps, tubes, cups, and similar products. It features a stable and simple transmission structure, flexible and convenient operation, high printing speed, and good printing quality. The substrate materials can be plastic or metal.

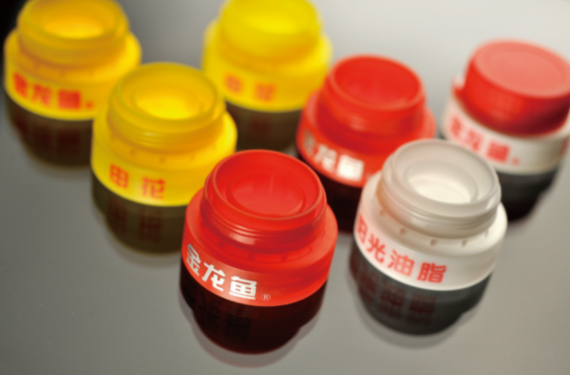

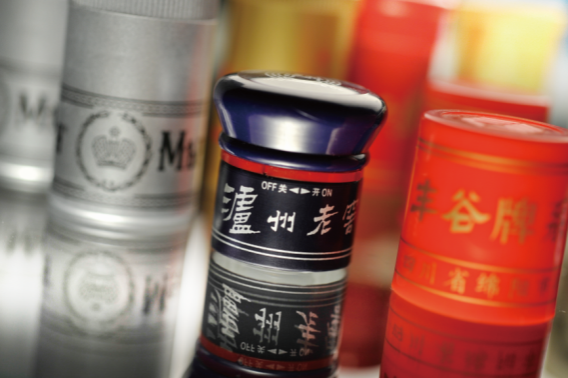

产品案例展示：

特点

- 1.产品自动理料，进出料;
  2.PLC和人机对话界面可以实现机器快速简单操作;
  3.核心电器件采用美国、德国、日本品牌。
- 1.Automatic product sorting, feeding, and discharging;
  2.PLC and HMI (human-machine interface) enable fast and simple machine operation;
  3.Core electrical components are sourced from American, German, and Japanese brands.

技术规格


印刷速度Printing speed	3600-4200 Pieces/hour
印刷尺寸Printing size	直径 φ15-060mm, 长Length 20-200mm
压缩空气压力Compressed air pressure	6-8 Bar
液化气 LPG	1.5 Bar
机身尺寸Machine size	L2800W 2600H 2900mm
功率 Power	AC 380V, 3-Phase, 50Hz/60Hz, 3Kw
