● 应用
本机型为全自动链式多色丝印机，适用于无定位点圆柱体表面印刷，实现多色印刷。承印物的材料可以是塑料、金属、玻璃等。如瓶盖、口红管、笔杆、软管、香水瓶等等。
● Applications
This model is a fully automatic in-line (chain-type) multi-color screen printing machine, suitable for multi-color printing on cylindrical surfaces without registration marks. The substrate materials can be plastic, metal, glass, etc., such as bottle caps, lipstick tubes, pen barrels, soft tubes, perfume bottles, and more.

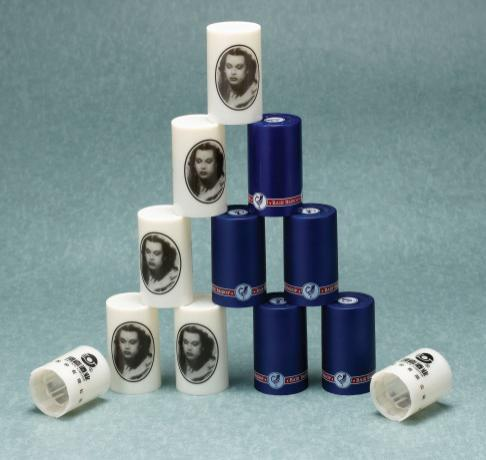

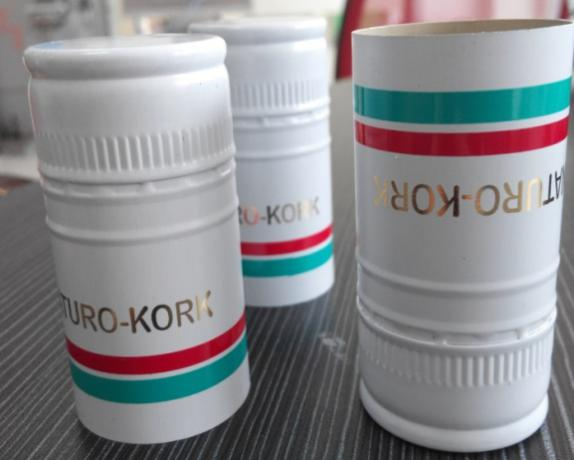

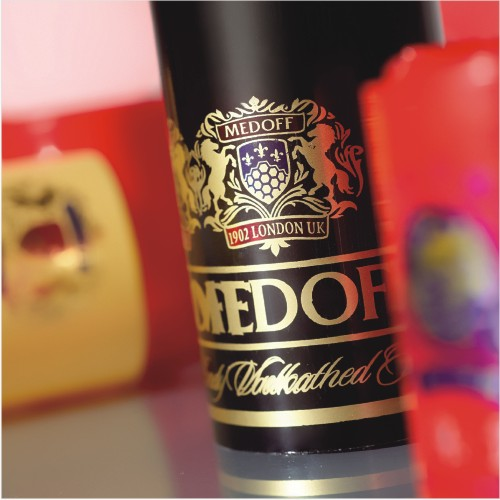

产品案例展示：
1.采用链条式结构，所有工位同步运行，最多可配置3个颜色，可选配丝印和烫金工位;
2.PLC和触摸屏控制，多种监控功能保障机器高速运行稳定和安全;
3.产品自动理料、进出料、自动定位。
1.Adopts a chain-type structure with all stations running synchronously. It can be configured with up to 3 colors, with optional screen printing and hot stamping stations.
2.PLC and touch screen control, with multiple monitoring functions to ensure stable and safe operation of the machine at high speed.
3.Automatic product sorting, loading/unloading, and automatic positioning.

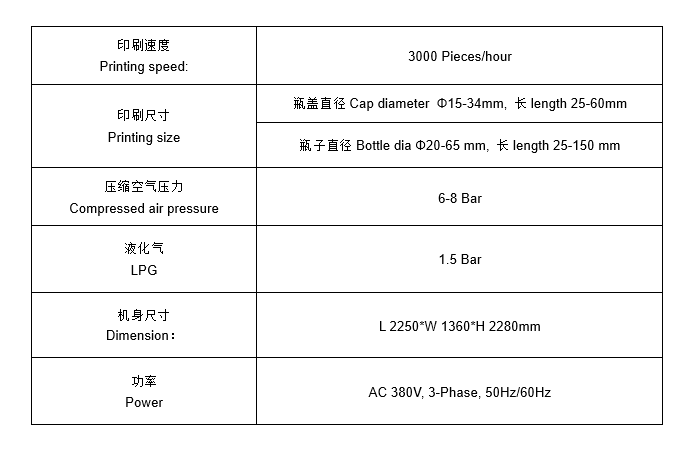

| 印刷速度 Printing speed | 3000 Pieces/hour |
| 印刷尺寸 Printing size | 瓶盖直径Cap diameter 15-34mm, 长length 25-60mm 瓶子直径 Bottle dia 20-65 mm,长length 25-150 mm |
| 压缩空气压力 Compressed air pressure | 6-8 Bar |
| 液化气 LPG | 1.5 Bar |
| 机身尺寸 Dimension | L 2250*W 1360*H 2280mm |
| 功率 Power | AC 380V, 3-Phase, 50Hz/60Hz |
