特点

• 1.采用链式结构传送瓶子，结构简单、易操作、少维护、精确定位、自动化程度高、快速印刷;

  2.可实现机械定位和色标定位;

  3.PLC控制和触摸屏人机界面，光电传感监控系统确保机器在高速下安全稳定运行;4.产品自动卧式进出、自动选方向、静电除尘、火焰预处理、预定位和印刷定位、无件不印、传统UV、LED UV。

  5.可搭配上光油和烫金工位;

  6.采用高规格机电配置。核心部件使用台湾、法国、德国、美国、日本等知名品牌。




  1.Uses a chain-type structure for bottle conveying, featuring simple structure, easy operation, low maintenance, precise positioning, high automation, and fast printing.

  2.Capable of mechanical registration and mark registration.

  3.PLC control and touch screen HMI, with photoelectric sensor monitoring system to ensure safe and stable operation of the machine at high speed.

  4.Automatic horizontal loading/unloading of products, automatic orientation selection, electrostatic dust removal, flame pretreatment, pre-positioning and printing registration, no-part-no-print, conventional UV, LED UV.

  5.Can be equipped with varnishing and hot stamping stations.

  6.Adopts high-spec electromechanical configuration. Core components are from well-known brands in Taiwan, France, Germany, the United States, Japan, etc.

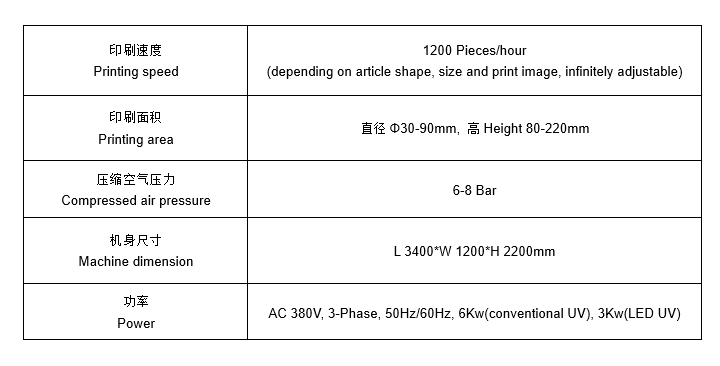

技术规格
